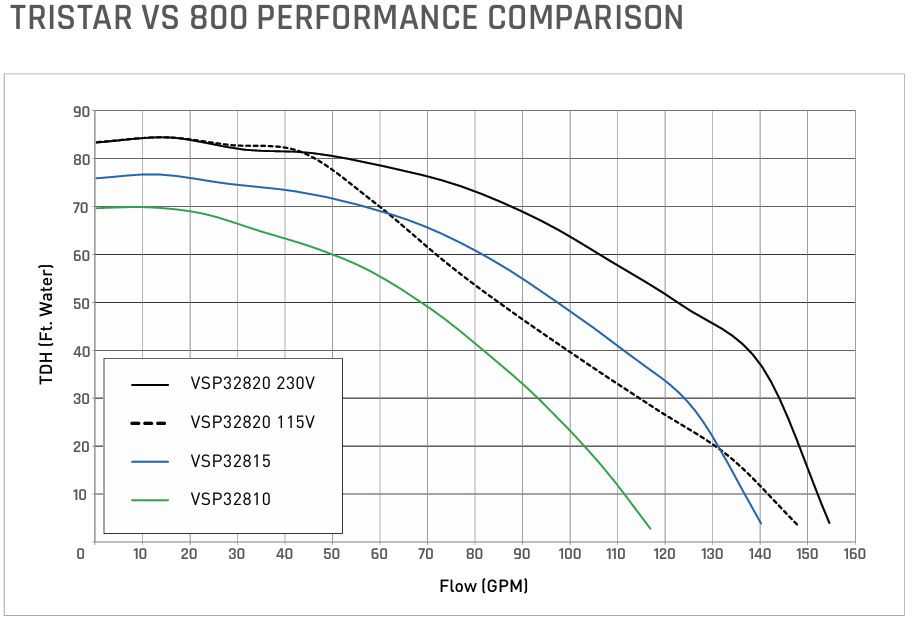

OmniX - TriStar VS 800
Model Number | Total H.P. | Union Connections | Speed Range | Voltage at 60 Hz | Amp Rating |
VSP32810 | 1.25 | 2" x 2.5" | 600-3450 RPM | 230/115 | 15.2/8.7 |
VSP32815 | 1.85 | 2" x 2.5" | 600-3450 RPM | 230/115 | 19.9/10.9 |
VSP32820 | 2.25 | 2" x 2.5" | 600-3450 RPM | 230/115 | 19.9/14.2 |

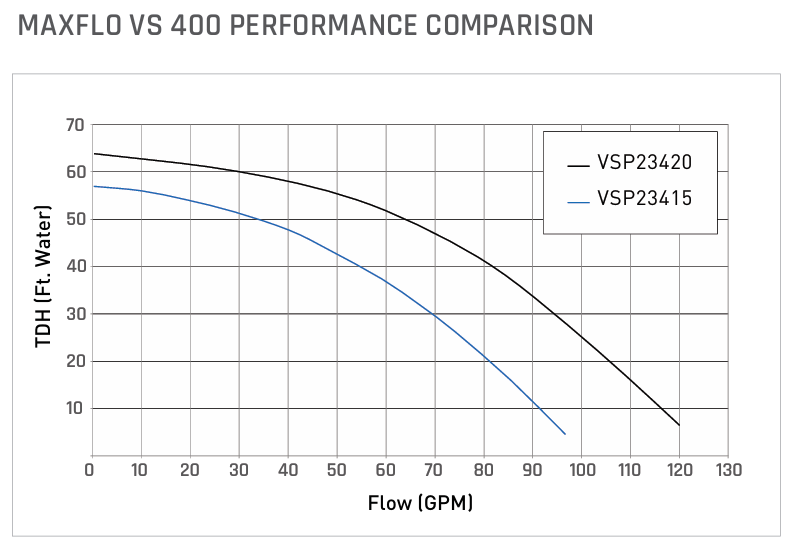

OmniX - MaxFlo VS 400
Model Number | Total H.P. | Union Connections | Speed Range | Voltage at 60 Hz | Amp Rating |
VSP23415 | 1.65 | 2" x 2.5" | 600-3450 RPM | 230/115 | 19.9/10.9 |
VSP23420 | 2.25 | 2" x 2.5" | 600-3450 RPM | 230/115 | 19.9/14.2 |
X1 Display
Model Number | Description |
VSXDISPLAYX1 | X1 Replacement display for Tristar, Maxflo, XL pumps |

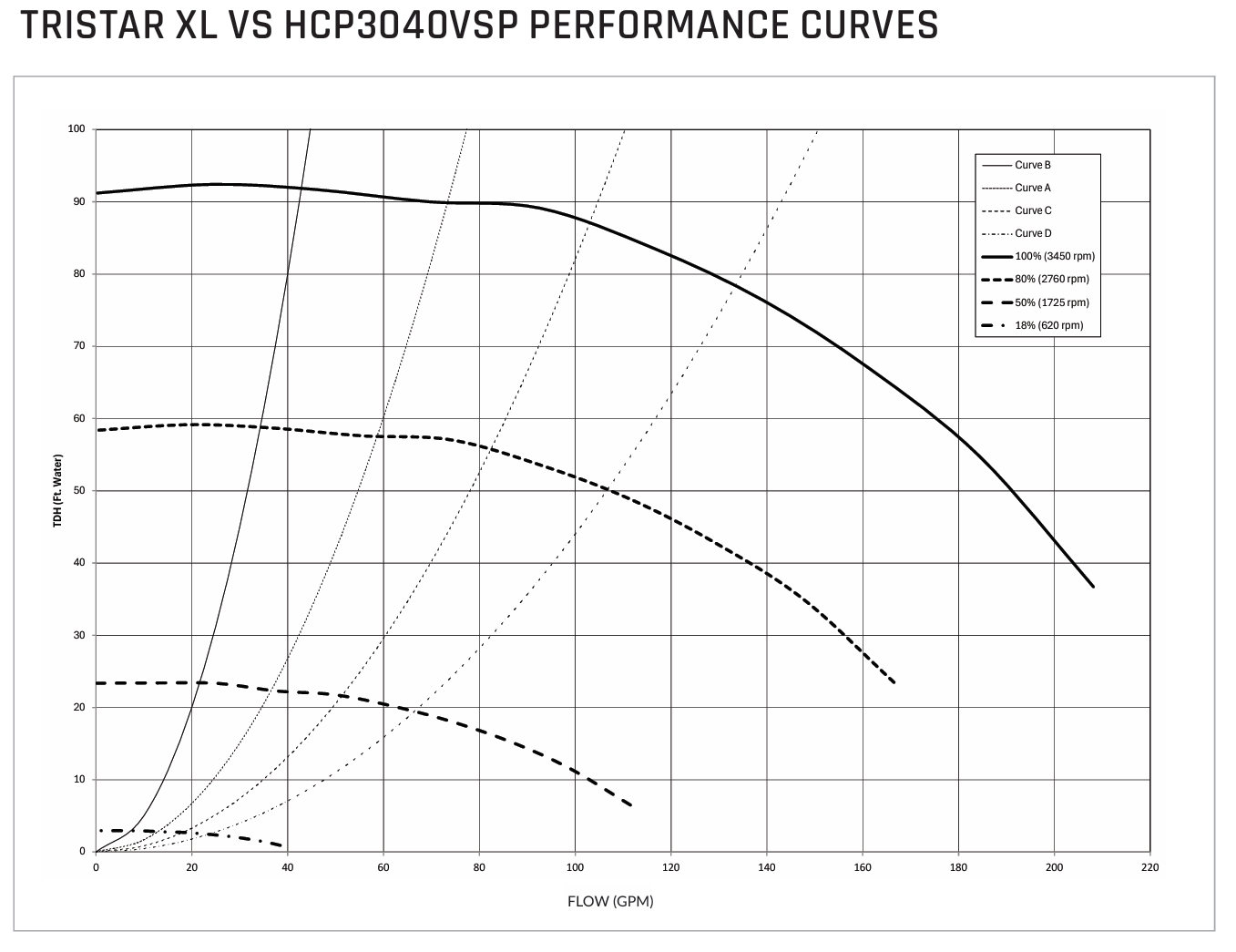

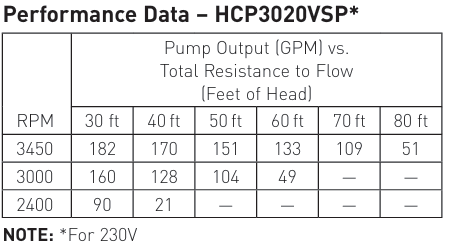

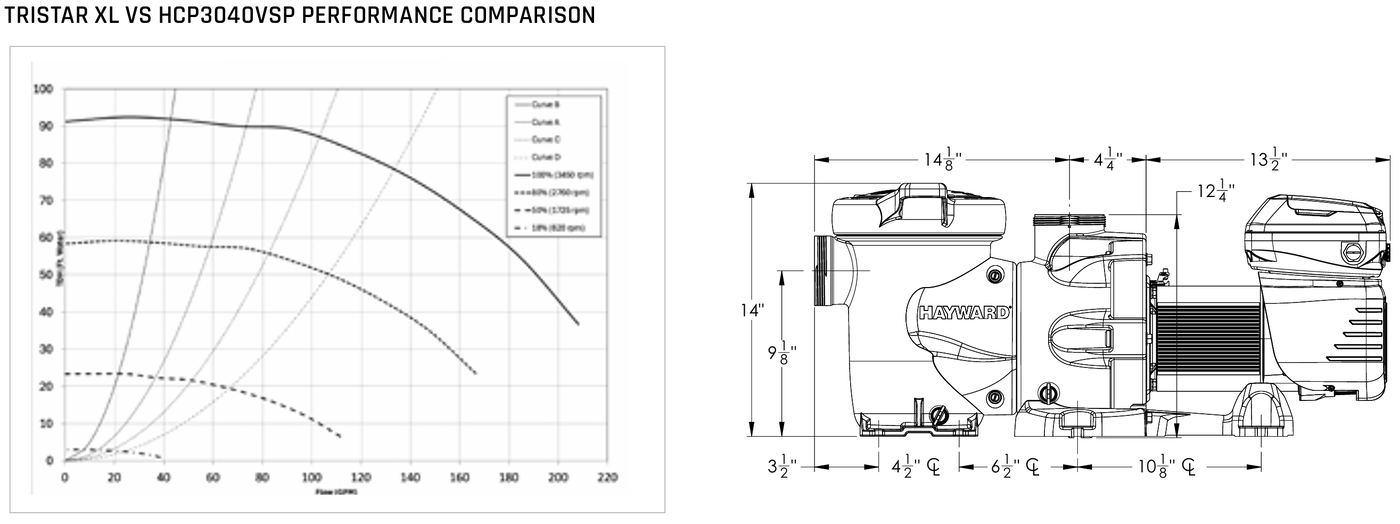

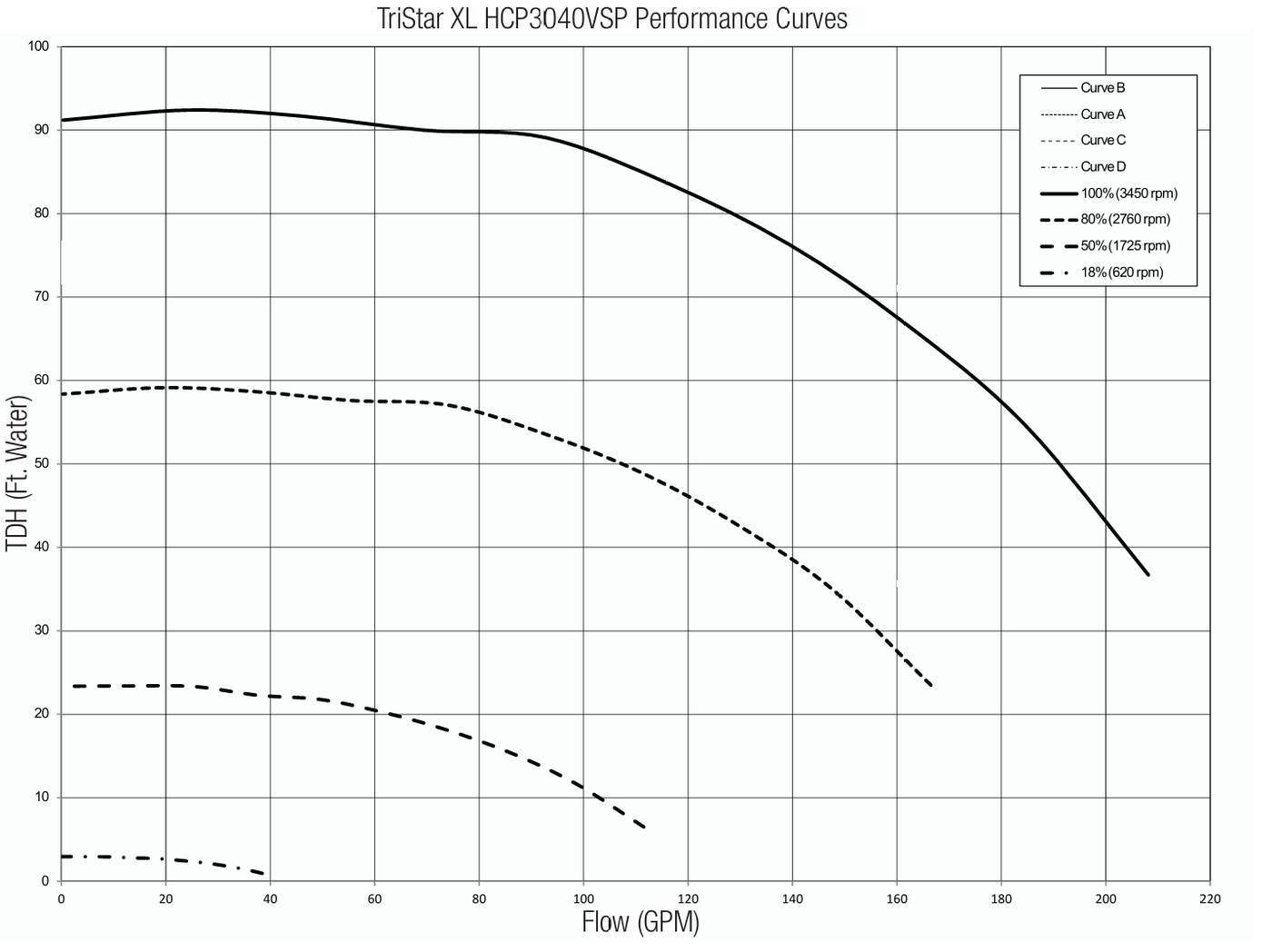

TriStar XL
Model Number | Model Number Uni | Total H.P. | WEF | Union Connections | Voltage at 60 Hz | Amp Rating |
HCP3020VSP | HCP3020VSPX1 | 2.7 | 7.2/9.9 | 2.5" x 3" | 230/115 | 10.2/12.2 |
HCP3040VSP | 4.0 | 6.0 | 2.5” x 3” | 208-230 | 17.1-15.5 |
 |  |
 |
TriStar VS900/950
Model Number | Model Number Uni | Total H.P. | WEF | Union Connections | Voltage at 60 Hz | Amp Rating |
TriStar VS 900 | TriStar VS 900 |
|
|
|
|
|
SP32900VSP* | SP32900VSPX1 | 1.85 | 8.3/12.9 | 2" x 2.5" | 230/115 | 7.4/7.2 |
TriStar VS 950 | TriStar VS 950 |
|
|
|
|
|
SP32950VSP* | SP32950VSPX1 | 2.70 | 7.3/10.1 | 2" x 2.5" | 230/115 | 10.2/12.1 |

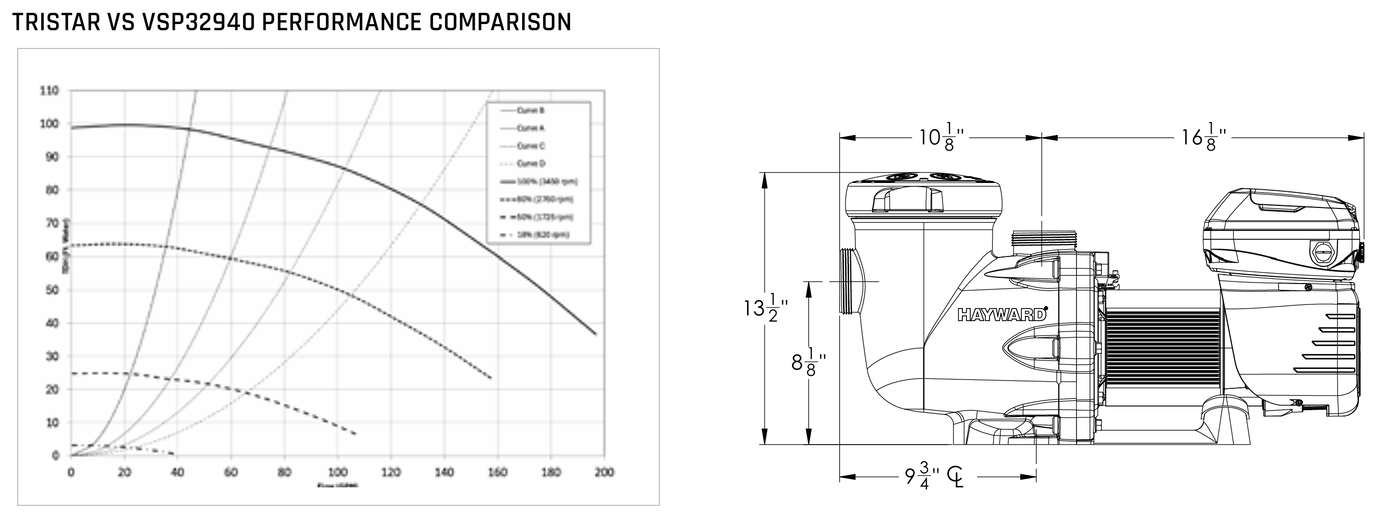

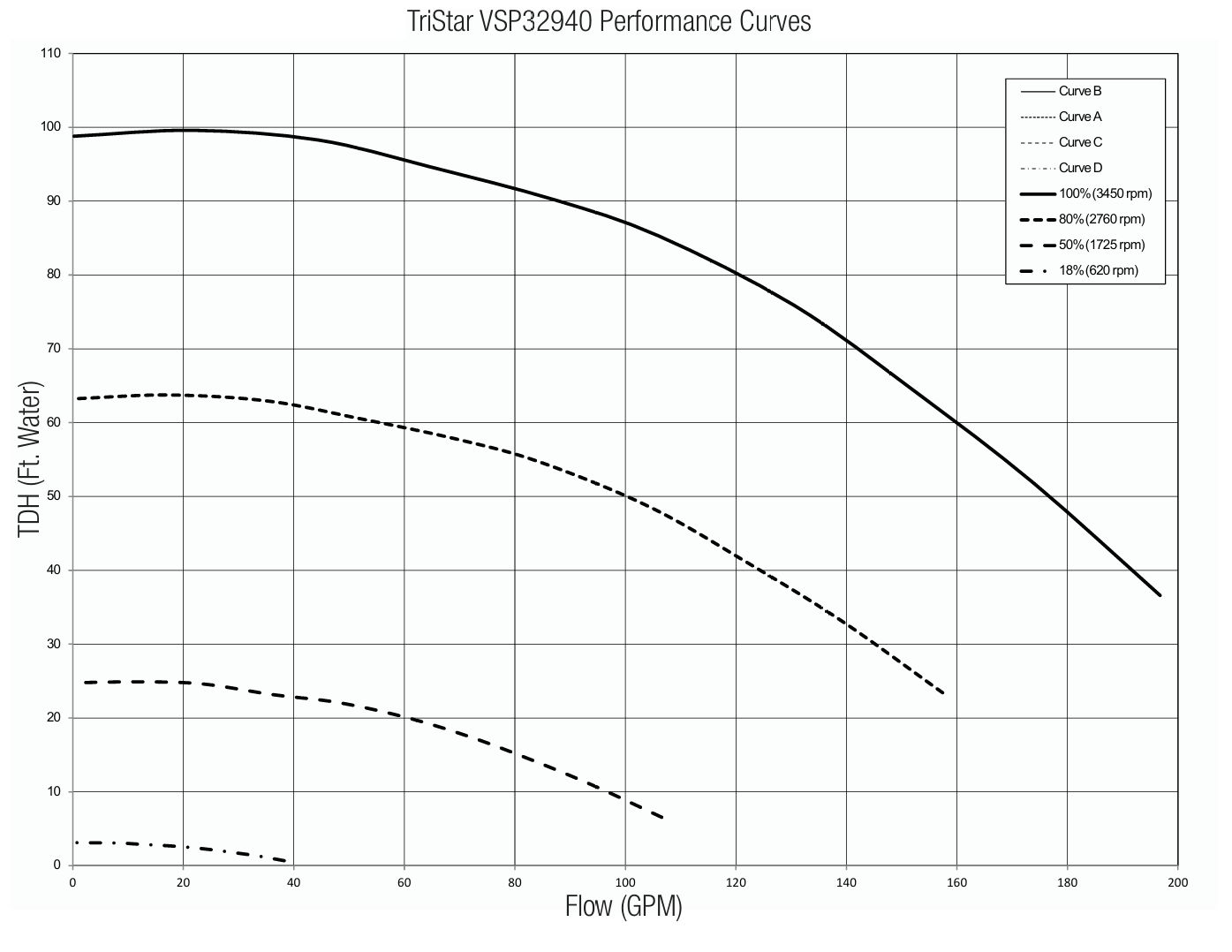

TriStar VS 940 | ||||||
VSP23940 | VSP23940 | 4.0 | 2” x 2.5” |

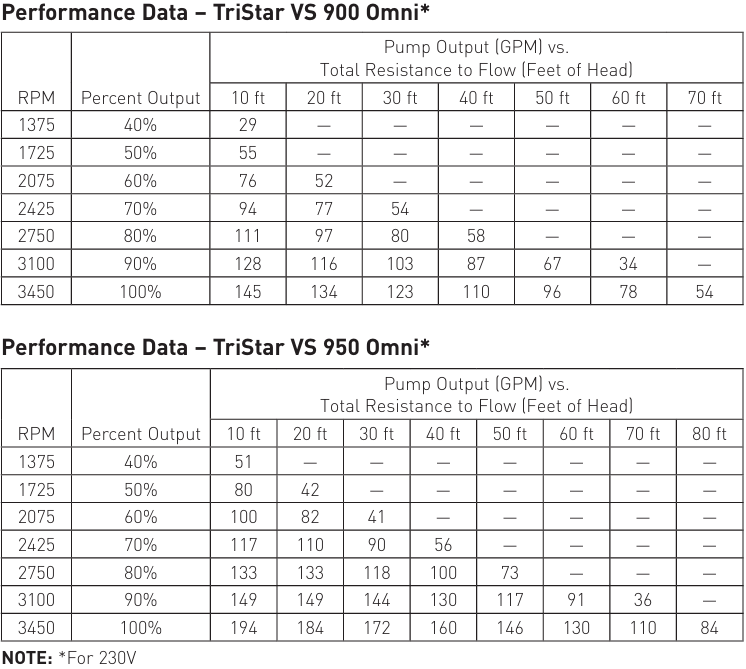

TriStar VS900/950 Omni
Model Number | Total H.P. | WEF | Union Connections | Voltage at 60 Hz | Amp Rating |
TriStar VS 900 |
|
|
|
|
|
HL32900VSP* | 1.85 | 8.3/12.9 | 2" x 2.5" | 230/115 | 7.4/7.2 |
TriStar VS 950 |
|
|
|
|
|
HL32950VSP* | 2.70 | 7.3/10.1 | 2" x 2.5" | 230/115 | 10.2/12.1 |
NOTE: *Extended Warranty for HL32950VSP and HL32900VSP is 3 years
TriStar VS C
Model Number | Model Number Uni | Total H.P. | WEF | Union Connections | Voltage at 60 Hz | Amp Rating |
TriStar VS C | TriStar VS C |
|
|
|
|
|
HCP2500VSP | HCP2500VSPX1 | 2.7 | 7.3/10.1 | 2" x 2.5" | 230/115 | 10.2/12.1 |
TriStar Single Speed
Model Number | Total H.P. | WEF | Voltage at 60 Hz | Amp Rating | Union Connections |
SP3200X10 | 1.1 | 4.0 | 208-230/115 | 6.5-6.0/12 | 2" X 2.5" |
SP3215X20XE* | 5.1 | 1.7 | 208-230 | 23.2-21.8 | 2" X 2.5" |
MaxFlo VS 500 / Omni
Model Number | Model Number Uni | Total H.P. | WEF | Voltage at 60 Hz | Amp Rating | Union Connections |
MaxFlo VS 500 Omni |
|
|
|
|
| |
HL2350020VSP* | 1.65 | 10.2/10.7 | 208-230/115 | 6.5 | 1 .5" x 2" | |
MaxFlo VS 500 | MaxFlo VS 500 |
|
|
|
|
|
SP23520VSP* | SP23520VSPX1 | 1.65 | 10.2/10.7 | 208-230/115 | 7.2 | 1.5 x 2" |
NOTE: *Extended Warranty is 3 years

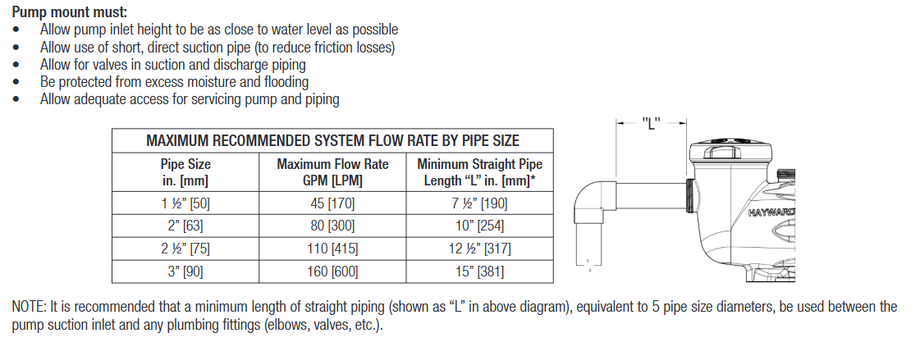

Pump Mounting
